Walkie-Talkie Repeater Systems: Extending Site Coverage
See how a two-way radio repeater receives, filters and retransmits site traffic—and what Malaysian teams should verify before deployment.
FIELD DECISIONTreat the repeater as one link in a measured RF system, not as a box that automatically fixes every dead zone.
What does a radio repeater do?
A two-way radio repeater receives a transmission on one frequency and retransmits it on another, usually from a higher and better-positioned antenna. That engineered path can carry calls beyond direct radio-to-radio range. The result still depends on frequency planning, antenna placement, RF isolation, feeder loss, power and commissioning tests.
See how the obstruction is bypassed
The elevated receive-and-retransmit point bridges terrain that blocks the direct radio-to-radio path.
Follow the working path
-
01
Receive
A handheld reaches the site receive antenna on the assigned input channel.
-
02
Select
Filtering rejects unwanted energy before it reaches the receiver.
-
03
Process
The repeater validates and routes the analogue or digital call.
-
04
Isolate
A duplexer keeps high-power transmit energy away from the sensitive receiver.
-
05
Retransmit
The output path sends the call through the feeder and site antenna.

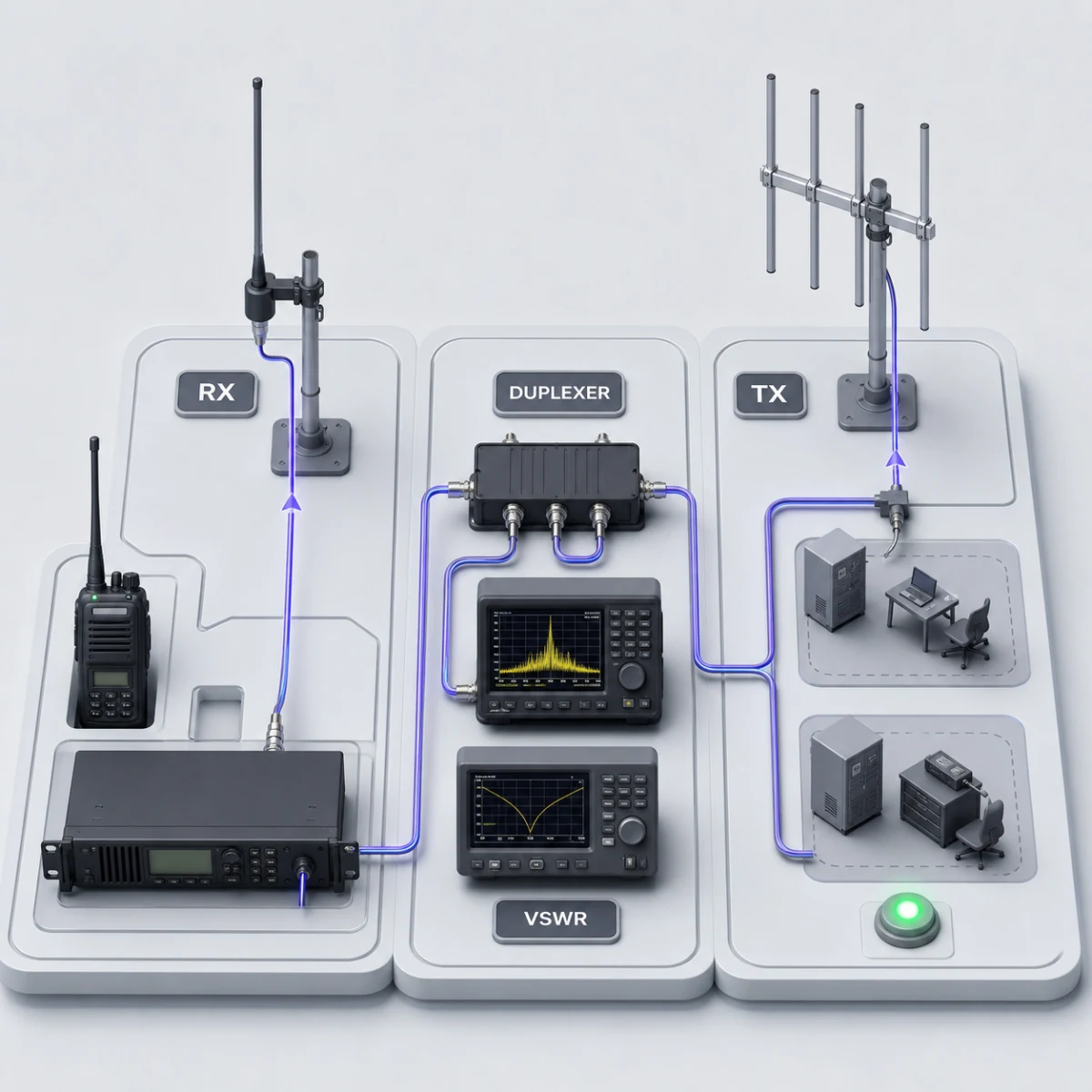

What to verify before handover
-
01
Map the required work zones and the places where users actually carry radios.
-
02
Confirm the licensed channel plan, assignment conditions and equipment parameters before programming.
-
03
Measure antenna-system return loss, feeder loss, duplexer isolation and receive sensitivity.
-
04
Prove usable speech and call handling in the real operating environment, not only beside the rack.
Where otherwise good systems go wrong
F01
More power, same obstruction
Increasing transmit power does not remove concrete, terrain or a badly placed antenna from the RF path.
F02
Untested duplexer
Poor isolation can let the transmitter desensitise its own receiver, shrinking coverage when the channel becomes busy.
F03
No power or alarm plan
A repeater that disappears during a mains failure is not a dependable coverage path.
Questions teams ask before they decide
Does a radio repeater increase walkie-talkie range?
It can extend practical coverage by receiving and retransmitting calls from a better RF position. The final range depends on terrain, building loss, antenna height, feeder loss, interference and radio configuration.
Can one antenna handle both receive and transmit?
Yes, when a correctly tuned duplexer provides enough isolation between the repeater receive and transmit paths. Separate antennas are another design option.
What should be tested before handover?
Verify the assigned channels, output power, receive performance, RF isolation, antenna system, alarms, backup power and voice quality across the agreed work zones.
Sources behind this guide
-
Malaysian spectrum assignment framework.
-
DMR system and repeater operating modes.
-
Example of current professional repeater infrastructure.
Product references illustrate operating principles and available equipment features. Final design, compatibility and regulatory decisions must follow the selected equipment, site survey and applicable Malaysian assignment conditions.
